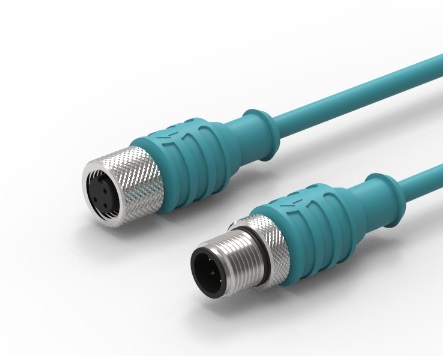

EMI Shielded 1 Meters M12 4Pin D-Coding Male Straight Connector Molded 22AWG PVC Black Cable

Item name:m12 cable

Number of contacts:3,4,5,8,12

Connector locking system:screw

Termination:solder

Degree of protection:IP67

Mechanical operation:>100 mating cycles

Upper temperature:+80℃

Lower temperature:-25℃

Rated voltage:250V,250V,125V,60V,30V

Rated current:4A,4A,4A,2A,1.5A

Rated impulse voltage:2500V,2500V,1500V,800V,500V

Pollution degree:3

Contact resistance:≤3mΩ

Material of contact:brass

Contact plating material:gold

Material of contact body:PA

Material of housing:brass nickel plated

M12 series connector are widely used in the industrial instrumentation, factory automation, process control, commercial electronics, field. It is with  A-coded,B-coded and D-coded.

Electrical & Mechanical data

Standard:

IEC 61076-2-101

Cable jacket material:

PVC

Connection type:

Single ended cable

Orientation:

Straight

Wire gauge:

22AWG/0.34mm2

Insert/ Housing:

TPU

Overmold/ Shell:

TPU

Rated current:

4 A

Connector contacts:

Brass with gold plated

Rated voltage:

250V

Ambient temperature:

-25°C ~ + 80°C

Coupling nut/screw:

Brass with nickel plated screw

Insulation resistance:

≥100 MΩ

Sealing:

O-ring

Contacts resistance:

≤ 5 mΩ

Shielding:

Available

Wire Termination:

Soldering

IP rating:

IP67

Description

M12 Pre-molded PUR cable connectors with 12mm thread locking mechanism, rated IP67 protection degree,contacts configuration is 4 poles. 360°EMC shielding is available for option. Compliant with IEC 61076-2-101 and mainly designed for signal transmission.

● Cable length: 1M
● Degree of protection IP 67
● Only 4 poles per connector is available
● Operating voltage 250V; Current range: 4A
● Anti-vibration locking screw design

Applications

● Sensor, actuator, encoder, servo motors
● Factory automation and process control
● Packaging, labeling and logistic devices
● Industrial instrumentation
● Commercial electronics PCBA
● Industrial safety light curtain, light grid, switches
● Power supply
● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
● LED display panel & outdoor LED lighting
