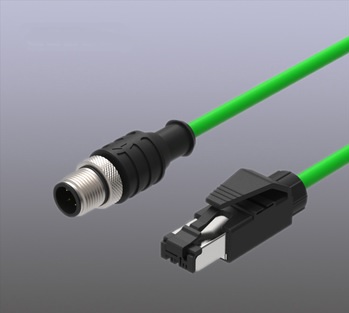

M12 4Pin Male to RJ45 CAT5E Ethernet patch cable

L:2000mm ; cable OD:5.8mm.

Application: Automation

Insulation material: PVC/TPU.

Color :Black.BLUE,YELLOW,OR GREEN.

Connector: M12 4PIN male/RJ45 8P8C.

Wire: 26AWG*4

Specifications:

1/10GBit Ethernet.

10/100Mbit Ethernet.

Rated current: 2.5A-4A

Rated voltage: 30v

Withstand voltage:1000VAC for 60s

Operating  temperature: -25 to 70c.

Storage temperature:-25 to 70c.

Protective structure:IP20

M12:

PBT(UL94V-0)

Number of cores:4 pairs 26AWG.

Material :PVC/LSZH/PUR

Shield structure: Double shield S/FTP.
